Alloy-radial centrifugal gas-recirculation fan on the Jitamitra shop floor
Home  /  Applications  /  Gas Recirculation (GRF)
Applications

Gas recirculation fans — hot, dirty flue gas pushed back into the furnace.

A GRF fan does not send gas to the stack — it takes a controlled slice of flue gas off the boiler or kiln and pushes it back into the furnace, windbox or duct to reshape the temperature profile and hold NOx down. The gas it handles is hot, ash-laden and often below the acid dew point, and it runs on a closed recycle loop where a stumble shifts the combustion balance. This is a survival duty, not a clean-air one. We build GRF fans across the full envelope below — up to 2,00,000 CMH, 2,000 mmWC, 400 HP and 600 °C.

2,00,000CMH max flow
2,000mmWC max static
600 °Crecycled gas
400 HPdrive power
15,000+
fans built since 2011
200 HP
VFD test rig · IS 4894 / AMCA 210
99%
on-time delivery
3
working days to quote — always
OFF THE FLUE-GAS PATH · POSITIVE PRESSURE · RECYCLED HOT DIRTY GAS · BACK INTO THE FURNACE
What it does

A GRF fan closes a loop — it pulls hot flue gas off and pushes it back in.

A gas recirculation fan sits on a branch off the flue-gas path: taking a metered slice of hot, dust-laden flue gas from downstream of the furnace and delivering it back — into the windbox, the burner zone or the gas duct — to profile temperature, control slagging and hold NOx down. Unlike an ID fan, it is not routing gas to the stack; it is feeding it back into the process at positive pressure.

  • 01
    Take off

    A metered slice of hot flue gas from the recycle tap — typically 10–25% of total gas flow at 150–400 °C (to 600 °C on kiln and furnace loops), carrying residual ash the fan must survive.

  • 02
    Push back

    Into the windbox, burner zone or gas duct at positive pressure — overcoming the recycle-loop resistance, which typically runs 300–1,500 mmWC depending on take-off and re-injection points.

  • 03
    Hold the split

    The recirculation ratio steady across boiler load so the temperature profile and NOx setpoint stay on target — the curve must not wander as furnace draft and gas density shift underneath it.

INDUCED-DRAFT CENTRIFUGAL FAN Single-width single-inlet — scroll cut away to reveal the impeller inlet expansion joint MOTOR IE3 / VFD GAS IN GAS OUT n 1 2 3 4 5 6 7 8 9 10 1 Inlet cone (bell-mouth) 2 Backward-curved / radial-tipped impeller 3 Spiral volute casing 4 Replaceable AR wear plates (volute throat) 5 Shaft 6 Plummer-block bearings (L10 ≥ 40,000 h) 7 Shaft cooling disc (>400 °C duty) 8 Pedestal / base frame 9 Drive — motor + coupling 10 Outlet flange + duct take-off
Fig. 1GRF centrifugal fan — single-width single-inlet, scroll cut away to reveal the radial-tipped impeller and shaft cooling disc. Numbered components keyed below the drawing.
Why it is hard

The recycle loop keeps the worst of the flue gas — hot, dirty and often below dew point.

A GRF fan handles the same punishing gas an ID fan does, but with two twists: the take-off is often at the coldest, most corrosion-prone point of the flue-gas path, and the fan runs on a closed loop where downtime shifts the combustion balance, not just the draft. Design for the recycled gas you actually have and the fan runs 10+ years between overhauls. Specify it as a hot-air fan and the acid, ash and heat take it down in 18–30 months.

01 — CORROSION

Acid dew-point on the recycle loop

Recirculated gas is often tapped at a cooler point in the path, so it sits near or below the SO₃ dew point (~120–150 °C). Sulfuric acid condenses on the casing and impeller and eats the wetted metal — and the loop concentrates it, cycle after cycle.

How we engineer it out

Insulation and heat tracing to hold the casing wall above dew point, plus corrosion-resistant metallurgy on the wetted surfaces — Corten, 316L or higher alloy sized to your SO₂/SO₃ and moisture, not a default grade.

02 — EROSION

Recirculated-ash impeller wear

Even a slice of flue gas carries residual fly ash, and on the recycle loop that ash passes the wheel every pass. Particles strike the blades at >50 m/s; uneven loss throws the rotor out of balance and cracks the blade root over time.

How we engineer it out

Radial-tipped or straight-radial wheels that reject dust from the blade root, hard-faced (chrome-carbide) leading edges, and AR400 bolted-in wear plates at the volute throat and outlet — replaceable in place, not welded in.

03 — HEAT

Sustained high gas temperature

On kiln and furnace loops the recycled gas can run to 600 °C continuous. Unmanaged, that heat conducts down the shaft into the bearings and drives thermal growth that binds the rotor.

How we engineer it out

Shaft cooling disc as standard above 400 °C, casing upgraded to IS 2062 or 16Mo3, expansion joints for thermal growth of order ~25 mm on a long run, and bearings selected for sustained 80–100 °C housing temperature.

How we design for it

Every choice is documented on the GA drawing you sign off — before we cut metal.

We don't sell a catalogue near-fit. The fan is engineered to your recycled-gas analysis, temperature, ash load, recirculation ratio and operating point — made to order, not off a shelf.

  • Materials & corrosion protection — Mild steel + epoxy standard; Corten or 316L where the loop sits below acid dew point; Hastelloy or Inconel on aggressive chloride/sulphur gas; casing insulation and heat tracing to hold the wall above dew point on the recycle loop.

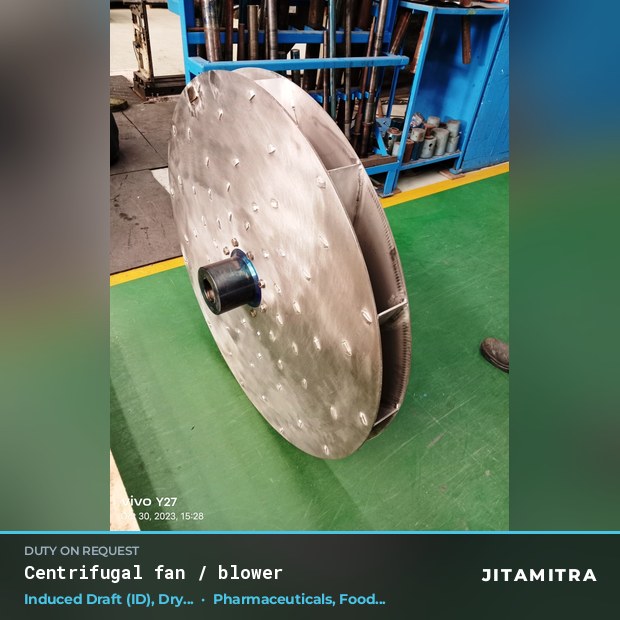

  • Wheel geometry & wear protection — Radial-tipped backward-curved by default for efficiency with dust tolerance; straight-radial where recirculated-ash build-up dominates. Chrome-carbide leading edges and AR400 bolted-in wear plates at the throat and outlet, with access doors for in-place replacement.
  • Recirculation-ratio control — VFD default — The temperature profile and NOx setpoint move with boiler load, so the recycle split must track. VFD speed control holds the ratio across the range and avoids the throttling loss of a damper at part load; inlet vane dampers remain available for legacy retrofit.
  • Thermal management — Shaft cooling disc standard above 400 °C (available from 350 °C on request); fabric or metal expansion joints sized for growth of order ~25 mm at 400 °C; shaft sized for thermal expansion and bearings selected for sustained 80–100 °C housing temperature.
Engineered to your duty point

We size the fan onto the stable side of its curve — then prove it on the rig.

No catalogue fan forced onto your spec. Your recirculation duty point is engineered onto the stable, best-efficiency region of the selected wheel — so the recycle ratio holds as furnace draft and gas density shift — and verified on the 200 HP VFD test rig at your gas density before dispatch.

avoid: unstable 0 40,000 80,000 1,20,000 1,60,000 2,00,000 VOLUME FLOW RATE  [ CMH ] 0 500 1000 1500 2000 STATIC PRESSURE  [ mmWC ] 0 25 50 75 100 STATIC EFFICIENCY  [ % ] Fan static pressure System resistance Static efficiency BEP 82% DUTY POINT 1,20,000 CMH · 450 mmWC Fan static pressure System resistance Static efficiency
Fig. 2Representative GRF-fan characteristic — fan static pressure, recycle-loop resistance and static efficiency vs. flow, with the recirculation duty point engineered onto the stable, best-efficiency region. Illustrative; every fan is sized to its own duty and gas density.
Capability envelope — GRF service

What we can supply, and where it stretches on application.

ParameterStandardOn application
Volume flowup to 2,00,000 CMHhigher on enquiry
Static pressureup to 2,000 mmWChigher on enquiry
Recycled gas temperatureup to 600 °C continuoushigher with refractory lining + special metallurgy
Inlet particulate loadingheavy inlet loadinghigher with enhanced wear protection
Recirculation ratio10–25% of total gas flow typicalper combustion and NOx-control design
Drive powerup to 400 HPhigher with custom motor sourcing
Speed600–1,800 RPM typicalper duty + sound limits
Balance qualityISO 21940 G6.3G2.5 / G1.0 on application

The envelope above covers the great majority of gas-recirculation duty. For duty beyond it, we engineer to spec and quote on enquiry. Recycled-gas temperature runs 150–400 °C on most boiler loops and to 600 °C on kiln and furnace loops; ash loading is loop-dependent — heavy on raw recycle taps and much lighter where the take-off is downstream of an ESP or bag filter. Where the loop sits below the acid dew point we hold the casing above dew point with insulation and tracing and match the metallurgy to your gas analysis. Bearing life is a design target of L10h ≥ 40,000 h continuous, with longer L10 on application.

How a Jitamitra GRF fan is specified

Specified, not picked from a shelf.

The same engineering language carries from your enquiry to the GA drawing to the nameplate — expressed in the standard AMCA conventions.

Specification fieldOptions
Arrangement (AMCA 99)Arr. 1 (overhung, fan bearings) / Arr. 4 (direct, motor on base) / Arr. 8 (overhung on common base) / Arr. 9 (overhung, motor side) / Arr. 10 (overhung, motor inside base) — selected by drive, access and temperature.
Width / inletSWSI (single width, single inlet) default for GRF duty; DWDI (double width, double inlet) for high recycle flow at moderate pressure.
Wheel typeRadial-tipped backward-curved (default, efficiency with dust tolerance) / straight-radial (when recirculated-ash build-up dominates) / backward-curved (clean-recycle, high-efficiency duty).
Class (by pressure / outlet velocity)Class I / II / III selected from the duty point on the pressure-vs-outlet-velocity limits; higher class = heavier construction for higher pressure and tip speed.
Materials of constructionMS + epoxy (standard) / IS 2062 or 16Mo3 casing for high-temperature recycle / AR400 bolted wear plates and chrome-carbide-faced wheel for recirculated-ash abrasion / Corten, 316L, Hastelloy or Inconel for acid dew-point and corrosive gas.
DriveDirect-coupled / V-belt / VFD (default for recirculation-ratio control). Drive up to 400 HP across the envelope; speed typically 600–1,800 RPM.
Discharge & rotation (AMCA orientation)Rotation CW or CCW (viewed from drive side) with discharge angle per AMCA — e.g. TH/BH/UB/DB — set to match your recycle-duct take-off and re-injection routing.
Accessories & high-temp scopeInlet vane damper or VFD control; fabric or metal expansion joints (thermal growth to ~25 mm at 400 °C); shaft cooling disc (standard above 400 °C); bolted-in AR400 wear plates and access doors; casing insulation and heat tracing for acid dew-point service; drain and inspection doors.
The proof, not the promise

We test before we ship — and you're welcome to witness it.

Every job's performance is verified at our works on the 200 HP VFD test rig, to the AMCA 210 / ISO 5801 method, before dispatch.

  • Customer-witnessed FAT on request — at no extra cost
  • Rotors balanced to ISO 21940 G6.3 as standard (G2.5 / G1.0 on application) before they leave the floor
  • Full NDT in-house — DP, MPI, UT, RT — to what the duty demands
30+ INDUSTRIES · 45 APPLICATION / DUTY TYPES
Where our GRF fans run

Engineered for the hot recycle loop.

Power Generation

Boiler gas-recirculation fans for steam-temperature control and NOx reduction on utility and cogen units.

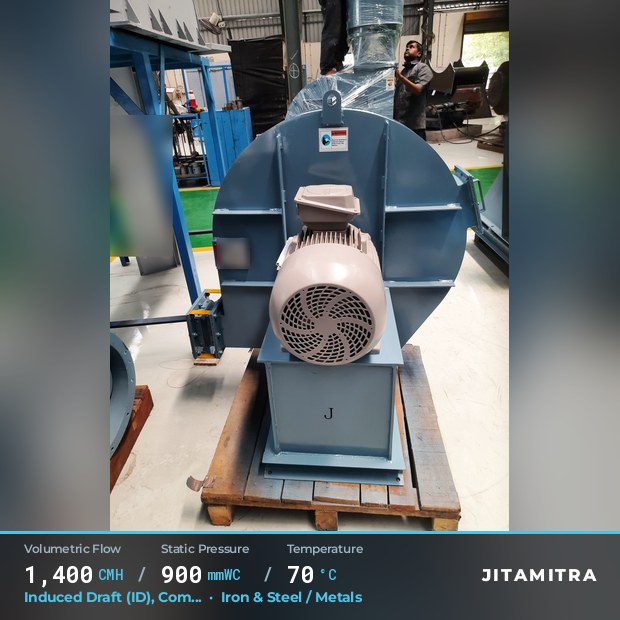

Iron & Steel

Reheating- and heat-treatment-furnace recirculation, sinter-plant gas recycle for temperature profiling.

Cement & Lime

Kiln and calciner gas-recirculation loops for thermal profiling and emissions control.

Chemicals & Petrochem

Fired-heater and process-furnace flue-gas recirculation for temperature and NOx management.

Glass & Ceramics

Melting- and annealing-furnace gas recirculation for uniform temperature across the bath.

Waste-to-Energy

Incinerator flue-gas recirculation for combustion staging and NOx control on the grate.

Furnaces & Heat Treatment

Recirculation fans that even out the temperature profile inside industrial furnaces and ovens.

Your process

45 application/duty types engineered. Tell us yours.

Standards & conformity

Stated precisely — because procurement checks.

What our marks mean, in the words that survive an audit.

Performance

Tested to the AMCA 210 / ISO 5801 method, in-house on our 200 HP VFD rig. Tested-to-method — not AMCA-certified.

Quality system

ISO 9001:2015 — third-party certified. Our only third-party certification.

CE conformity

Self-declared per 2006/42/EC + 2014/35/EU (Module A). A self-declaration, not a notified-body certificate.

ATEX conformity

Self-declared, Zone 2/22, Category 3, per 2014/34/EU, where the area classification calls for it.

Oil & gas duty

Designed and built to API 673 as project-specific scope.

Welding

ASME Sec IX qualified welders + WPS for every joint.

Balance

ISO 21940 — G6.3 minimum, G2.5 / G1.0 on application.

Vibration

ISO 20816 evaluation; ISO 14694 for fan-specific limits.

Lead time & process

From enquiry to a tested fan on your dock.

StageStandard dutyAPI-673 / engineered
Offer / quotation3 working days — always7–10 working days
GA drawing for approval2–3 weeks from PO3–4 weeks from PO
Manufacture + balance + paint6–10 weeks10–14 weeks
Performance test + witnessed FAT~1 week1–2 weeks
Order-to-dispatch (total)9–14 weeks14–20 weeks

Shutdown-driven replacements: we have shipped fans within 6 weeks of a clean PO. Tell us your shutdown window and we commit to a dated plan.

Questions engineers ask

The eight we hear most before a PO.

What is a gas recirculation fan, and how is it different from an ID fan?
A gas recirculation fan takes a controlled slice of hot flue gas off the boiler, kiln or furnace and pushes it back into the process — into the windbox, burner zone or gas duct — to reshape the temperature profile and hold NOx down. An ID fan, by contrast, pulls all the flue gas out to the stack. The GRF fan works on a closed recycle loop at positive delivery pressure, typically handling 10 to 25 percent of the total gas flow. Because it recycles the gas rather than exhausting it, the corrosion, ash and heat concentrate on the loop, so the survival engineering matters even more than on a once-through ID duty.
The recycled gas sits below the acid dew point. What materials do you use?
Recirculated gas is often tapped at a cooler point in the flue-gas path, so it can sit near or below the SO₃ dew point, typically around 120 to 150 °C, where sulfuric acid condenses and attacks the wetted metal. We hold the casing wall above dew point with insulation and heat tracing, and select corrosion-resistant metallurgy for the gas: Corten, 316L, or higher alloys such as Hastelloy or Inconel on request. The right grade depends on your SO₂/SO₃ and moisture, so we size both the material and the dew-point margin to your gas analysis, not a default.
How hot can the recycled gas be, and how do you manage the heat?
Continuous duty up to 600 °C across the envelope, with most boiler recirculation loops running 150 to 400 °C and kiln and furnace loops reaching the higher end. Above 400 °C we fit a shaft cooling disc as standard, available from 350 °C on request, to keep the heat out of the bearings. We upgrade the casing to IS 2062 or 16Mo3, add metal or fabric expansion joints sized for the thermal growth, up to about 25 mm on a long run at 400 °C, size the shaft for expansion and select bearings for a sustained 80 to 100 °C housing temperature. The fan is built for your stated gas temperature and excursion case, not a generic rating.
How do you protect the impeller from recirculated fly ash?
Even a slice of flue gas carries residual ash, and on a recycle loop that ash passes the wheel every cycle, so uneven erosion throws a curved wheel out of balance before it wears through. We default to a radial-tipped or straight-radial wheel that rejects dust from the blade root rather than packing it in, add chrome-carbide hard-facing on the blade leading edges for severe ash, and bolt in AR400 wear plates at the volute throat and outlet with access doors so they can be replaced in place, not cut out and re-welded. The wear package is sized to your recycle-tap loading, and where the take-off is downstream of an ESP or bag filter it is usually much lighter.
How do you keep the recirculation ratio steady across boiler load?
The temperature profile and NOx setpoint you are targeting move with boiler load, so the recycle split has to track rather than drift. We engineer the duty point onto the stable, best-efficiency region of the selected wheel so the fan does not wander as furnace draft and gas density shift underneath it, and we make VFD speed control the default because it holds the ratio across the range without the throttling loss of a damper at part load. Inlet vane dampers remain available for legacy retrofit. We verify the curve on the 200 HP VFD test rig at your gas density before dispatch.
Do you have a track record on gas-recirculation duty specifically?
We engineer gas-recirculation fans to your duty rather than claiming a long named reference list for this specific loop. The underlying engineering — hot, ash-laden, acid-dew-point flue gas on radial and radial-tipped wheels with shaft cooling, wear plates and dew-point protection — is the same survival engineering we apply across our induced-draft and hot-gas work, which is well proven. Specify your recirculation duty: gas analysis, temperature, ash load, recycle ratio and re-injection point, and we engineer and quote to it. We would rather show you the design basis than dress up a reference.
What is the lead time for a gas-recirculation fan?
A standard engineered GRF fan runs roughly 9 to 14 weeks order-to-dispatch: offer in 3 to 5 working days, GA drawing approval 2 to 3 weeks from PO, manufacture, balance and paint 6 to 10 weeks, and performance test plus FAT about a week. A high-temperature build with special metallurgy and dew-point scope, or a shutdown replacement matched to an existing footprint, is quoted with a dated commitment against your window rather than a placeholder. Send the recycled-gas analysis, temperature and duty point and we scope it precisely.
Do you build GRF fans to API 673, CE and ATEX requirements, and what do you actually test?
Yes. We design and build to API 673 for refinery and fired-heater recirculation service as project-specific scope, allowing 7 to 10 working days for the offer. CE is self-declared per 2006/42/EC and 2014/35/EU, and ATEX Zone 2/22 is self-declared per 2014/34/EU, Category 3, where the area classification calls for it. To be precise: those are self-declarations of conformity, not third-party certifications. Performance is tested in-house to the AMCA 210 / ISO 5801 method on our 200 HP VFD test rig, not AMCA-certified, and we are not an AMCA member. Balance is to ISO 21940 G6.3 as standard, with G2.5 or G1.0 on application. Our only third-party certification is ISO 9001:2015.
Across the range

Where gas recirculation fans fit — the fans that run them, related duties, and the industries served.

The same engineering, viewed three ways — by fan family, by duty, and by industry. Follow the cross-references.

Take it further

Specs an engineer can use — not a brochure.

Engineer to engineer

Send us the duty point.
We'll quote in 3 working days — always.

No model numbers needed. Give us the operating conditions — flow, static, gas temperature, composition, particulate, and any tender standard — and our application engineers size the fan and quote it. Attach a spec or GA if you have one.
